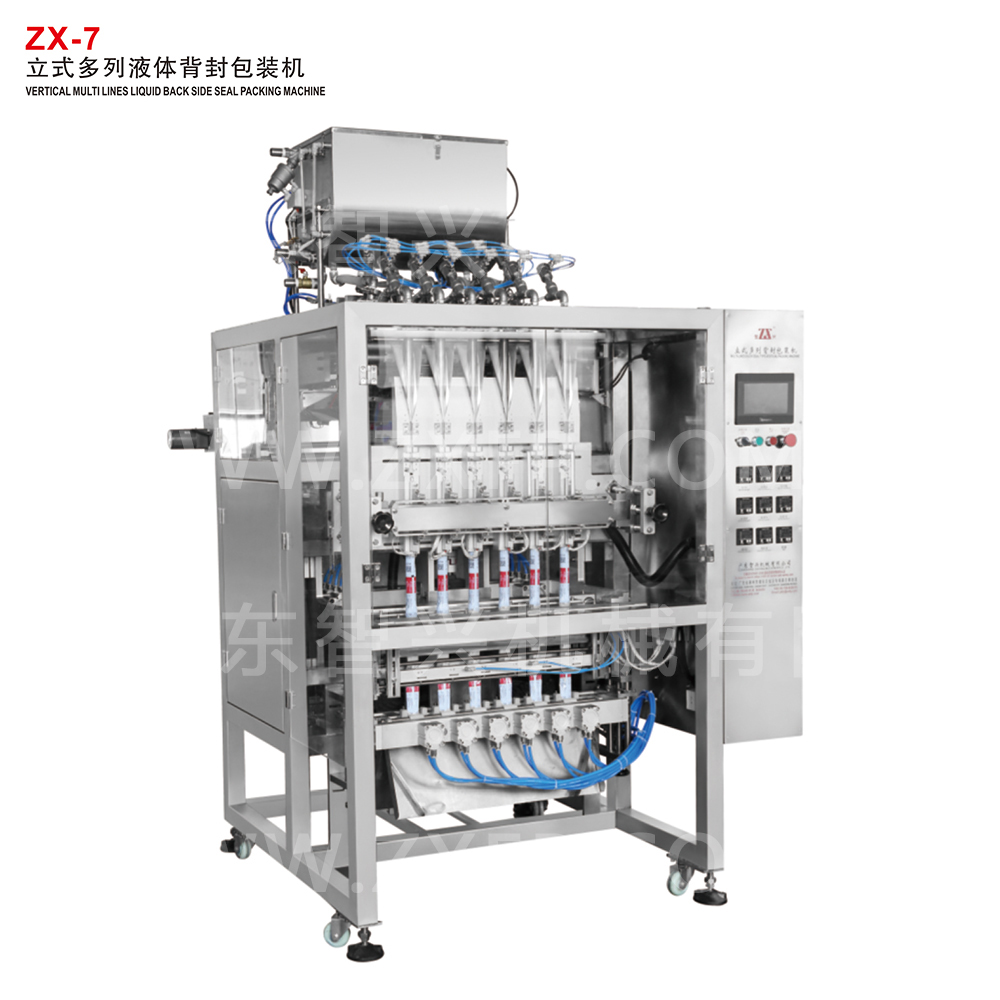

ZX-7 VERTICAL MULTI LINES LIQUID BACK SIDE SEAL PACKING MACHINE

ZX-7 VERTICAL MULTI LINES LIQUID BACK SIDE SEAL PACKING MACHINE

Model: ZX-7

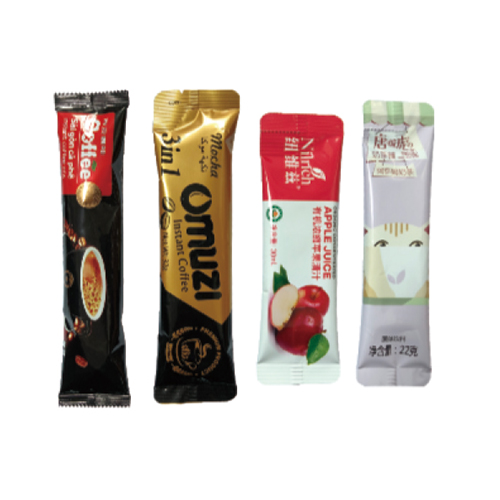

Scope: packing jelly, beverage and coffee
Technology parameters
MODEL NO. ZX-7
Power Supply single phase 220V/50Hz
Packing Material OPP/CPP, OPP/CE, MST/PE, PET/PE
Packing Film Thickness 0.06-0.1mm
Packing Film Width Range 480-720mm
Single Line Pouch Size 8-55mm(W) 40-180mm(L)
Single Line Packing Speed 40 bags/min
Total Power 10.45kw
Vertical Sealing Heaters Power 200wX6/220V AC
Horizontal Sealing Heaters Power 1000wX4/220V AC
Working Air Pressure 0.8MPa
Air Consumption 0.8 m³/min
Gross Weight 450kg
Outside Dimensions 1350mm x 1850mm x 2450mm
Information Videos Related Supporting Solution Spare Parts

Main performance and structural characteristics：
Description:Vertical multi lines liquid back side seal packing machine is a high-powered automatic packing machine. It includes all the actions like bag making, material sending, counting, filling,sealing, date printing and finished product outputting. This machine is suitable for packing jelly, beverage and coffee. This machine adopts high precision servo to control film sending. It has PLC control system, advanced touch screen HIMI mode, PH sensor automatic tracking and digital temperature controller etc. It is the first choice to improve production efficiency.
