Scope：
It is suitable for making different kinds of shapes. Such as ball, mushroom, cone,cylindrial, rectangular, multicolor or sandwich lollipop. All kinds of styles and shapes can be make according to customer requirement.
Main performance and structural characteristics:

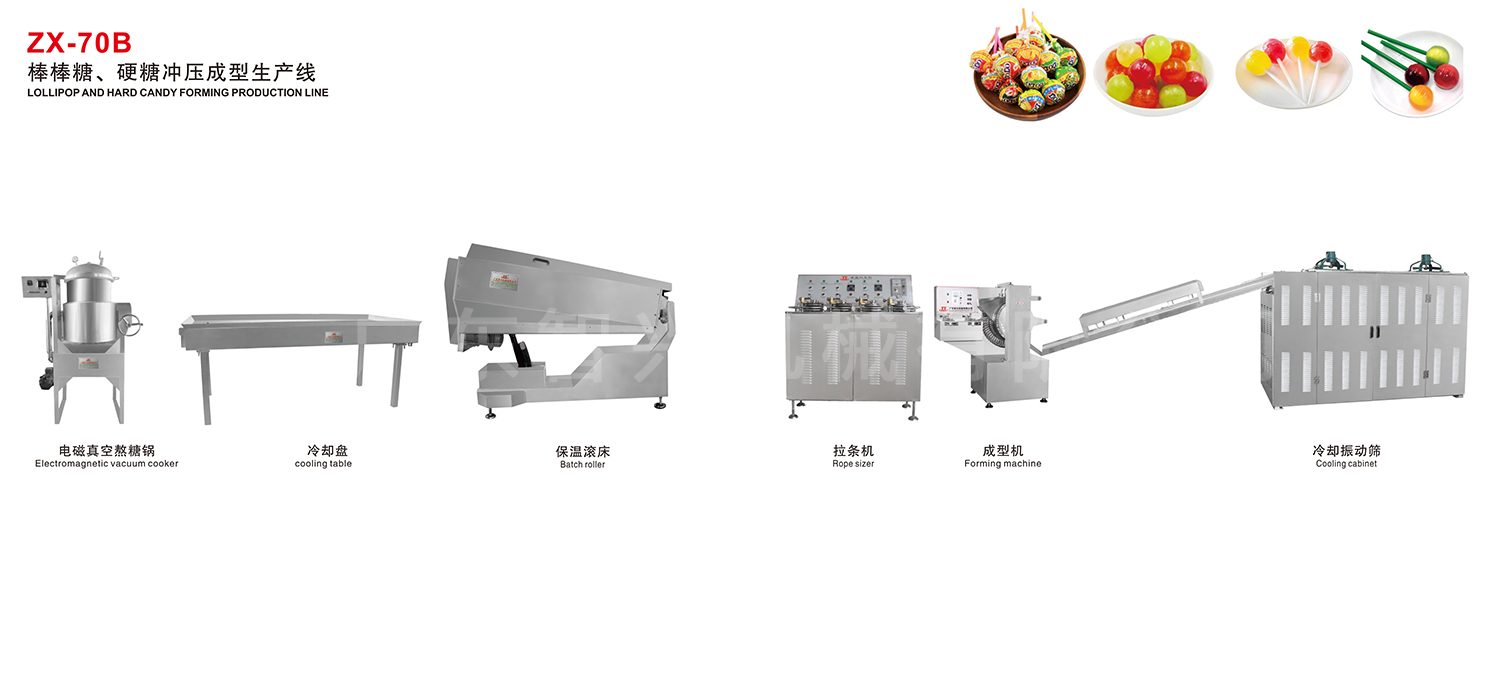

This production line is a professional machine of ball lollipop which composed by batch roller,rope sizer,forming machine and cooling cabinet.It has the advantage of high efficiency,less inferior candy.
| Production line performance technical parameters | |||
|---|---|---|---|
| Capacity（piece/min） | 800-1000/600-800（piece/min） | ||
| Gross power（kw） | 36.35kw | ||
| Diameter | φ20-φ30mm | ||
| Dimension | 10550x1100x1300 | ||
| Gross weight | 2350kg | ||
| Technical parameters for each machine | Power | Outside Dimensions | Weight |
|---|---|---|---|
| Electromagnetic vacuum cooker Sugar cooking quantity |
25kw | 1200x900x1100 | 150kg |
| Cooling table | 2000x1000x800 | 150kg | |
| Batch roller | 4.75kw | 2100x600x1150 | 400kg |
| Rope sizer | 3.3kw | 1150x800x1300 | 400kg |
| Forming machine | 2.2kw | 1500x1000x1200 | 1100kg |
| Cooling cabinet | 1.1kw | 2600x500x950 | 150kg |
