ZX-320AWF BACK-SEAL HORIZONTAL SCREW TYPE AUTOMATIC PACKING MACHINE
Model: ZX-320AWF

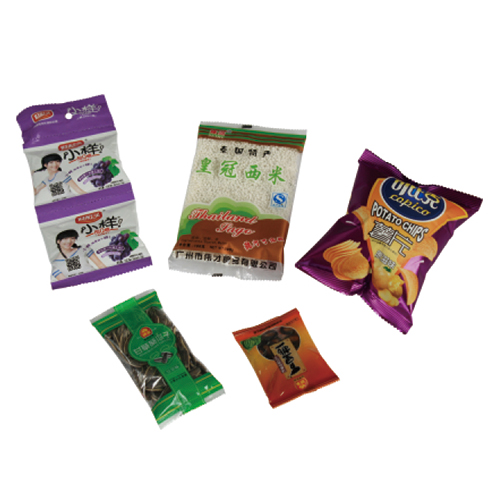

Scope: all kinds of powder and granule material packing (for example: milk powder, starch, coffee powder, seasoning powder, coconut powder, medicine powder, pesticide powder etc).
Scope: all kinds of powder and granule material packing (for example: milk powder, starch, coffee powder, seasoning powder, coconut powder, medicine powder, pesticide powder etc).
| 性能技术参数 | |
|---|---|
| MODEL NO. | ZX-320AWF |
| Speed(bag/min) | 30-85 |
| Bag Size(mm) | L:50~200 W:30~100 |
| Max Outside Diameter of Rolling Film(mm) | ≤Φ450 |
| Max Width of Packing Film(mm) | 220 |
| Packing Film Thickness(mm) | 0.05~0.10 |
| Total Power(kw) | 3.5 |
| Working Voltage(v) | 220V/50Hz |
| Counting Range(ml) | 5-300 |
| Outside Dimensions(mm) | 1350×950×1900 |
| Gross Weight(kg) | 400 |
| Air Consumption(m³/min) | 0.1 |
