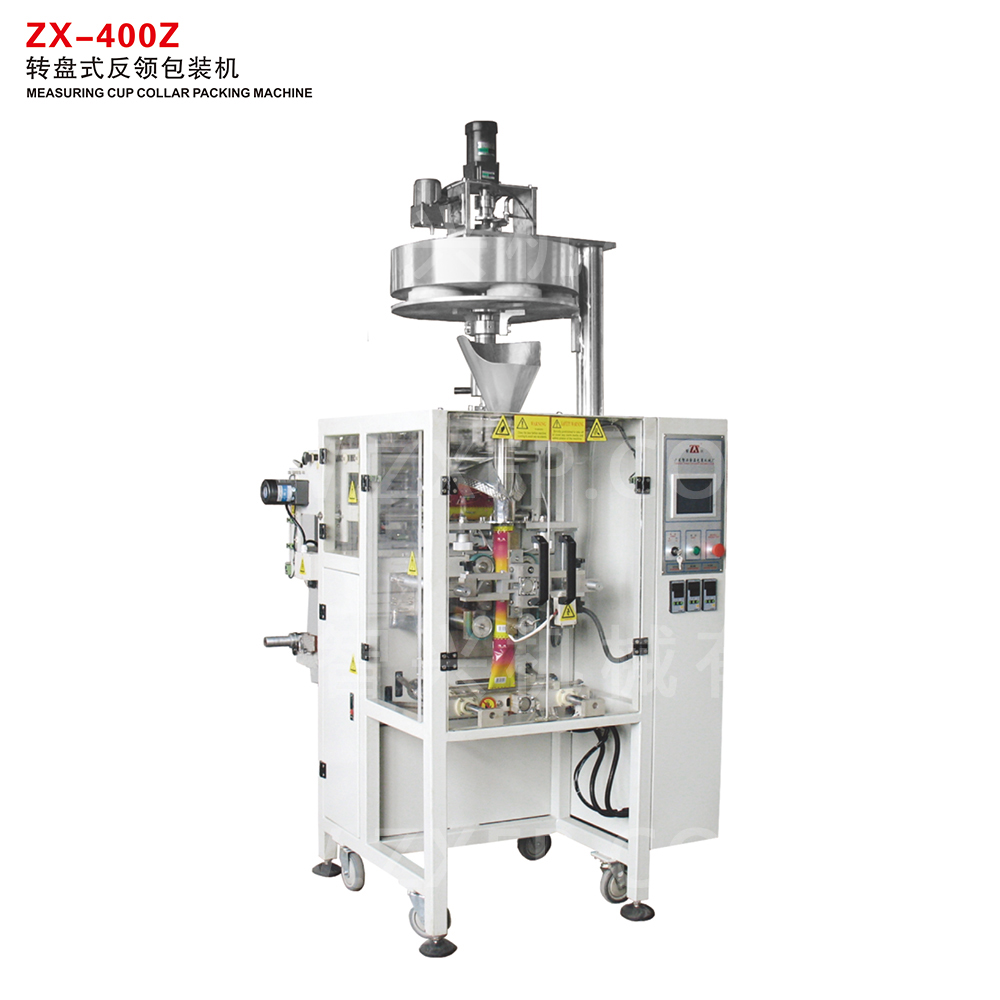

ZX-400Z MEASURING CUP COLLAR PACKING MACHINE
Model: ZX-400Z
Scope: packing all kinds of bulk material, such as granule, powder, potato chips, candy, casual snacks, hardware items, pet food, green vegetable (cut), frozen food, seeds and fertilizers etc.
Scope: packing all kinds of bulk material, such as granule, powder, potato chips, candy, casual snacks, hardware items, pet food, green vegetable (cut), frozen food, seeds and fertilizers etc.
| Technology parameters | |||
|---|---|---|---|
| MODEL NO. | ZX-400Z | ZX-600Z | ZX-800Z |
| Speed(bag/min) | 15-65 | 10-60 | 10-40 |
| Bag Size(mm) | L:100~350 W:90~190 | L:100~500 W:90~250 | L:100~600 W:100~360 |
| Filling Volume(ml) | 50~2000 | 50~3000 | 50~4000 |
| Rated Voltage(v) | 380 | 380 | 380 |
| Voltage Range(v) | 342~412 | 342~412 | 342~412 |
| Rated Frequency（Hz） | 50 | 50 | 50 |
| Working Pressure | 0.36m3(Normal)/min 0.6MPa | 0.36m3(Normal)/min 0.6MPa | 0.36m3(normal)/min 0.6MPa |
| Lowest Absolute Vacuum (KPa) | 1.33 | 1.33 | 1.33 |
| Total Power（kw） | 3 | 3.5 | 3.5 |
| Outside Dimension（mm） | 3800×2730×2700 | 4210×2800×2800 | 4600×3050×3300 |
