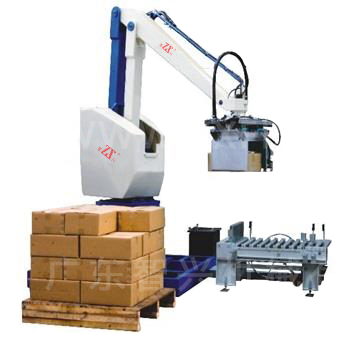

Palletizing

Palletizing

Model:
Scope:
Technology parameters
MODEL NO. EC-61-M EC-101-M EC-171-M EC-201-M
Mechanical structure Multi-joint robot
Mode of action Cylinder coordinate type
Pallet weight (including gripper) 70-160kg 70-160kg 70-160kg 70-160kg
Palletizing ability (maximum) 850c/hr 850c/hr 850c/hr 850c/hr
Action axis Standard four-axis (up to five axes)
Range of motion 2300mm 2300mm 2300mm 2300mm
  1500mm 1500mm 1500mm 1500mm
  ⊙-Axis(turn.) 330度
  a-Axis(wrist.) 330度
Grip Simplex220V 50HZ
Palletizing memory 3.2KW
Teaching method 440kg
power(220V 3PH 50Hz) 1.9KVA 2KVA 3KVA 6.5KVA
Compressed air 0.5Mpa 0.5Mpa 0.5Mpa 0.5Mpa
Robot body weight (excluding gripper) 700kg 800kg 750kg 1150kg

Remarks: When the equipment related configuration requirements are different due to different materials and the like, the above data may be different from the actual ones.

Main performance and structural characteristics:
1. Energy-saving, environmentally friendly robots, import of main engine parts.
2. It adopts aluminum alloy and FRP shell, which is light in structure and low in noise. It has the most reasonable use of power, so that it consumes less power to minimize consumption.
3. A large number of standard parts of brand manufacturers are used. The number of parts is small and the reliability is high, which greatly reduces the failure rate of the machine and reduces the quantity of spare parts in the customer.
4. From low-speed to high-speed, from packaging bags to cartons, from palletizing a product to palletizing a variety of different products, you can find the robot that best suits your needs.
5. The operation is simple and easy to understand, easy to run.
