Scope：
This production line is suitable for producing starch soft candy, cream candy and bubble gum which shape is column and strip.It can fill powder or jelly inside as customers' requirement.
Main performance and structural characteristics:

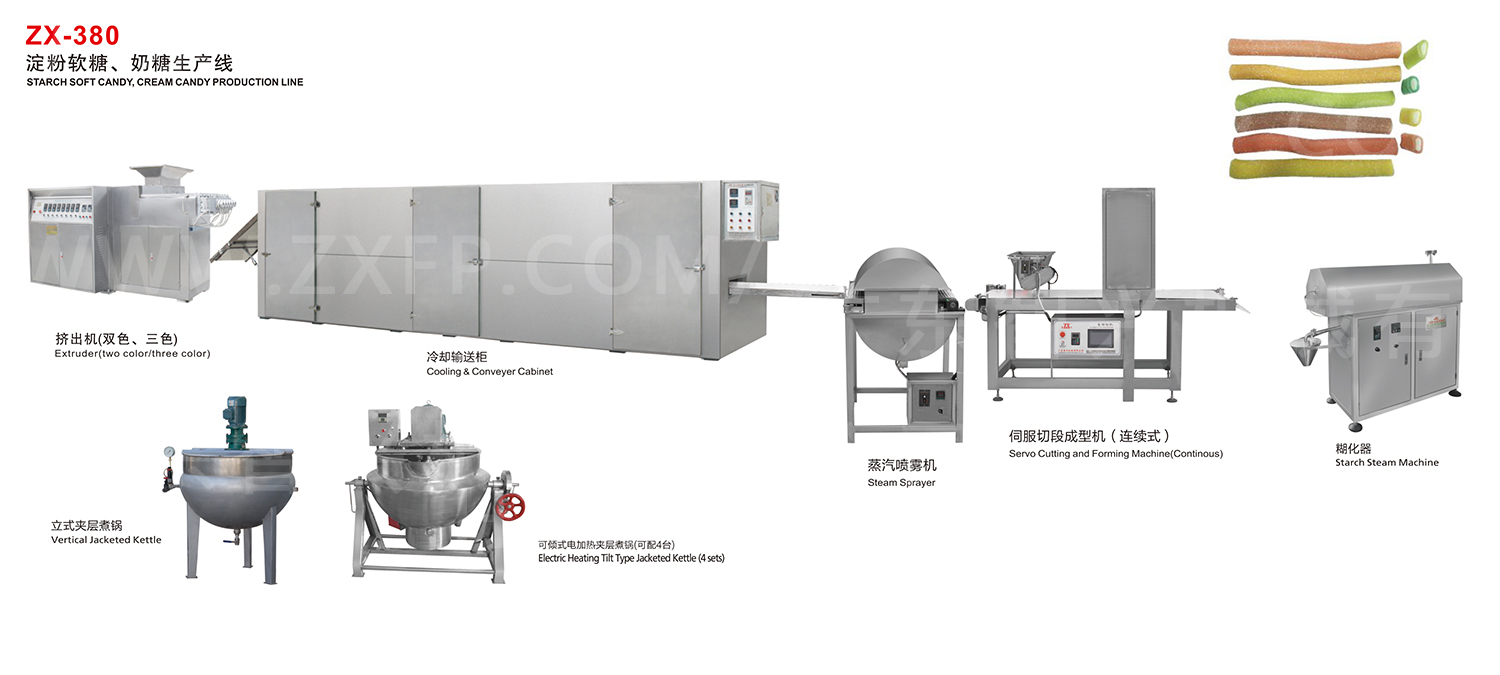

This production line is composed by vertical jacketed kettle, starch steam machine, exturder, sandwich pump, steam sprayer, cooling conveyer cabinet, cutting and forming machine.
| Production line performance technical parameters |
| MODEL NO. |
ZX-380 |
| Capacity(kg/h) |
300-400千克/小时(kg/h) |
| Dimension(mm) |
14000x1900x1900 mm |
| Gross Power(kw) |
40 kw |
| Gross Weight(kw) |
8000 kg |
| NAME |
Main Power(kw) |
Outside Dimensions(mm) |
Gross Weight(kg) |
| Vertical Jacketed Kettle |
Steam |
1.5 |
1210×1120×1420 |
300 |
| Electric |
20 |
1320×1120×1620 |
300 |
| Electric Heating Tilt Type Jacketed Kettle |
Steam |
4.2 |
1820×1220×1470 |
400 |
| Electric |
23 |
1760×1220×1560 |
300 |
| Starch Machine |
1.5 |
1320×560×1300 |
160 |
| Mixer |
22 |
2600x1230x910 |
1500 |
| Extruder(Two color) |
20 |
2500×1180×1550 |
2200 |
| Sandwich Pump |
4.5 |
1600×500×1050 |
300 |
| Cooling & Conveyer Cabinet |
18 |
12500×1850×1800 |
2500 |
| Steam Sprayer |
3.2 |
1150×650×1120 |
55 |
| Cutting and Forming Machine |
3 |
2500×1100×1800 |
400 |
